Toyota Hilux Wheels
Lenso 17 inch and 18 inch 4x4 wheels built to fit the Toyota Hilux. Every wheel on this page comes in the Hilux 6x139.7 stud pattern, with offsets to suit a factory look, a flush stance or a wider flared build.
Aftermarket Wheels and Rims for Your Hilux
The Hilux is one of Australia's most popular utes, and swapping the factory rims for a set of aftermarket mag wheels is one of the quickest ways to make it your own. Whether you are chasing a tougher look around town, more tyre choice for touring, or extra load capacity after a GVM upgrade, Lenso has a Hilux wheel to suit. Every Lenso wheel is tested to perform reliably on Australian roads, and Lenso is a global wheel brand with over 30 years behind it. Browse the full Lenso off-road wheels range, or find the best Hilux fitments below.
From the factory, most Hilux 4x4 models run either 17x7.5 wheels (e.g. SR) or 18x7.5 wheels (e.g. SR5 and Rogue), both at around +30 offset. Below are the key wheel specs for the Toyota Hilux 4x4 (N70 and N80 models). Every Lenso wheel listed here matches them.
Some 2WD Hilux variants (e.g. WorkMate and SR 4x2) use a 5x114.3 stud pattern and will not suit these wheels. Buying for the new generation Hilux? Give our team a call to confirm fitment before you order.
17 Inch Wheels for Toyota Hilux
17 inch is the go-to size for Hilux owners who spend time off the bitumen. A 17 inch rim leaves room for a taller tyre sidewall, which means a softer ride over corrugations, better protection for the rim on rocks, and more room to air down on sand. It also opens up the widest choice of all-terrain and mud-terrain tyres, including 33 inch options in 285/70R17 for lifted builds.
Every 17 inch Lenso wheel below is a 17x9 in the Hilux 6x139.7 fitment.

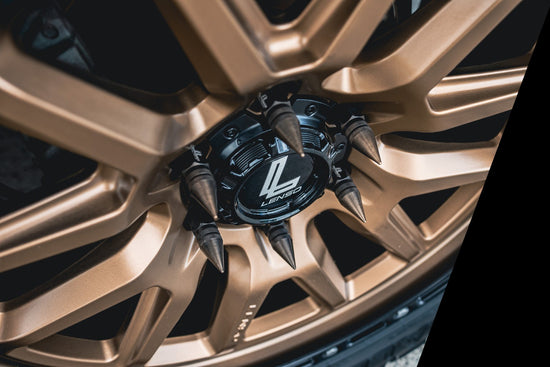

Lenso Marvel 17x9
Our ultimate 4x4 wheel. Beadlock-style design, ultra brake clearance and a 1250kg load rating.
Lenso Dinero 17x9
Multi-spoke, deep dish look with a 1500kg load rating for serious touring and GVM builds.
Lenso Argo 17x9
Beadlock-style design with a sharp, aggressive centre face. 1250kg load rating.
Lenso Gravel 17x9
Beadlock-style design in three finishes, with ultra brake clearance.
Lenso Hurricane 17x9
Web spoke design with an innovative lip and a mega 1500kg load rating.
Lenso KAOS 17x9
Imitation beadlock with a bold machined finish and 1500kg load rating.
Lenso Amada 17x9
Genuine beadlock for rock crawling and heavy-duty touring. 1250kg to 1600kg load rating.
18 Inch Wheels for Hilux
18 inch wheels fill out the guards and give the Hilux a sharper, more modern stance, especially on SR5 and Rogue models that already roll on 18s from the factory. The lower profile tyre gives crisper steering and more stability on the highway and when towing, while still leaving plenty of sidewall for gravel roads and weekend tracks.
Every 18 inch Lenso wheel below is an 18x9 in the Hilux 6x139.7 fitment.
Lenso Marvel 18x9
Our ultimate 4x4 wheel. Beadlock-style design, ultra brake clearance and a 1250kg load rating.
View Marvel
Lenso Dinero 18x9
Multi-spoke, deep dish look with a 1500kg load rating for serious touring and GVM builds.
View Dinero
Lenso Cartel 18x9
Beadlock-inspired styling with a muscular centre face. 1500kg load rating. 18 inch only.
View Cartel
Lenso Argo 18x9
Beadlock-style design with a sharp, aggressive centre face. 1250kg load rating.
View Argo
Lenso Hurricane 18x9
Web spoke design with an innovative lip and a mega 1500kg load rating.
View HurricaneWant to go bigger? The Lenso Marvel is also available in 20x9 +18 in the Hilux 6x139.7 fitment (Satin Black, Dirty Bronze and Graphite Grey).
17 vs 18 Inch Wheels on a Hilux
Both sizes bolt straight onto a Hilux 4x4. The right choice comes down to how you use your ute.
Choose 17 inch if you:
- Tour, camp or drive off-road regularly
- Want a taller sidewall for a softer ride and airing down
- Plan to run 33 inch tyres on a lifted Hilux
- Want the widest choice of AT and MT tyres
- Want a beadlock option (Amada)
Choose 18 inch if you:
- Spend most of your time on the road or towing
- Want a modern look that fills the guards
- Drive an SR5 or Rogue already on 18s
- Want sharper steering feel on the highway
- Still want solid off-road ability on gravel and tracks
Hilux Wheel Offset Guide
Offset controls how far your wheel sits in or out of the guard. The Hilux comes from the factory at around +30. A lower number pushes the wheel further out for a wider, tougher stance.
| Offset | Look | Best for |
|---|---|---|
| +30 to +35 | Close to factory, sits neatly inside the guard | Stock Hilux, daily driving, towing |
| +18 to +20 | Slightly wider, near flush with the guard | A tougher stance without flares |
| +12 | Wider, fills the guard | Mild lift and bigger tyres |
| 0 and negative | Deep dish, pokes past the guard | Flared and lifted builds, off-road and show builds |
Australian vehicle standards generally limit how much wider your track can go (commonly 25mm per side) before modifications need engineering. Rules vary by state, so check with your local authority or talk to our team if you are running a low or negative offset.
Lenso Hilux Wheel Fitment Chart
Every Lenso 4x4 wheel available in the Toyota Hilux 6x139.7 fitment, at a glance.
| Wheel | 17x9 offsets | 18x9 offsets | Load rating | Finishes |
|---|---|---|---|---|
| Marvel | -12, 0, +18, +30 | 0, +18, +30 | 1250kg | Satin Black, Dirty Bronze, Graphite Grey, Full Polished |
| Dinero | -22, 0, +18, +35 | +18, +35 | 1500kg | Satin Black, Dirty Bronze, Graphite Grey |
| Cartel | n/a | +18, +35 | 1500kg | Hyper Black, Satin Black |
| Argo | +12, +30 | +12, +30 | 1250kg | Satin Black, Dirty Bronze, Graphite Grey, Full Machined |
| Gravel | +20, +30 | +20, +30 | Ask our team | Satin Black, Copper Tint, Passion Black |
| Hurricane | +12, +30 | +12, +30 | 1500kg | Satin Black |
| KAOS (pre-order) | 0 | n/a | 1500kg | Full Machined, Machined Black Ring, Satin Black Machined Ring |
| Amada (beadlock) | -38, -22, -12, 0 | n/a | 1250kg to 1600kg | Full Machined, Machined Face Black Ring, Satin Black Machined Ring |
Available offsets can vary by finish and stock. Check the product page for current options, or call us on 1800 453 676. The Amada is a genuine beadlock wheel and is not for on-road use.
Why Hilux Owners Choose Lenso
Built for Australian conditions
Every Lenso wheel is made from premium-grade aluminium and tested to perform reliably on Australian roads.
Rated for GVM upgrades
With load ratings from 1250kg up to 1600kg per wheel, our 4x4 range is built for GVM upgrades and heavy-duty touring setups.
Ultra brake clearance
Our Marvel, Dinero, Cartel, Argo, Gravel and Hurricane wheels are all designed with ultra brake clearance.
Lifetime warranty
Every Lenso wheel supplied in Australia comes with our Lifetime Warranty Program, plus Australia wide delivery on all wheel sets.
Toyota Hilux Wheels FAQs
What size wheels and rims fit a Toyota Hilux?
The Toyota Hilux 4x4 uses a 6x139.7 stud pattern with a 106.1mm centre bore and M12 x 1.5 wheel nuts. Factory wheels are 17x7.5 or 18x7.5 at around +30 offset on most 4x4 models. 17 inch and 18 inch wheels are the most popular sizes, and most aftermarket Hilux wheels are 9 inches wide with an offset between 0 and +30. Every Lenso wheel on this page is made in the Hilux 6x139.7 fitment.
Are 17 or 18 inch wheels better for a Hilux?
17 inch wheels suit Hilux owners who go off-road, as the taller tyre sidewall gives a softer ride and more room to air down. 18 inch wheels suit mostly on-road driving and towing, with sharper handling and a more modern look. Both sizes fit a Hilux 4x4 without modification when you choose the right offset.
What offset is best for a Toyota Hilux?
The factory Hilux offset is around +30. For a slightly wider, near flush look without flares, +18 to +20 is a common choice. Offsets of 0 or negative push the wheel past the guards and are best suited to flared or lifted builds.
Will 17x9 or 18x9 wheels rub on a Hilux?
On a standard height Hilux, 17x9 and 18x9 wheels in +18 to +35 offsets with a similar size tyre to factory generally fit without rubbing. Larger tyres, lower offsets or a lift can change clearance, so check full steering lock and suspension travel, or ask our team before you buy.
What tyre size should I run on 17 or 18 inch Hilux wheels?
Popular 17 inch Hilux tyre sizes include 265/70R17 and 265/65R17, with 285/70R17 (about 33 inches) common on lifted builds. On 18 inch wheels, 265/60R18 is the factory size on many models, with 265/65R18 and 275/65R18 popular upgrades. Larger tyres may need a lift and should be checked against your state's rules.
Do Lenso wheels suit a Hilux with a GVM upgrade?
Yes. Lenso 4x4 wheels carry load ratings from 1250kg up to 1600kg per wheel, which is well above what a Hilux needs, including after a GVM upgrade.
Can I reuse my factory Hilux wheel nuts?
The Hilux uses M12 x 1.5 wheel nuts. Aftermarket wheels often need a different nut seat to factory. Lenso wheel sets often include free accessories like wheel nuts, so check with our team before you order.
Do these wheels fit the new generation Hilux?
This page covers the Hilux 4x4 models that use a 6x139.7 stud pattern. If you are buying for the latest generation Hilux, call us on 1800 453 676 and we will confirm fitment before you order.
Not Sure Which Wheel Suits Your Hilux?
Tell us your model, year, tyre size and any lift or flares, and our team will help you pick the right Lenso wheel and offset. Need something different? Ask about our custom wheel fitments.
