LandCruiser Wheels
Lenso 17 inch LandCruiser wheels built for the 79 Series and the rest of the 70 Series family, with track correct fitments to square up your stance. Choose from the M-79, the genuine beadlock Amada and the KAOS, all with load ratings made for GVM upgrades.
17 Inch LandCruiser Wheels
Few vehicles are as tied to Australian four wheel driving as the Toyota LandCruiser. Whether you drive a 79 Series ute, a 76 Series wagon or a 78 Series Troopy, a set of aftermarket LandCruiser rims is one of the best upgrades you can make. The 70 Series leaves the factory on 16 inch wheels, and stepping up to 17 inch opens up a huge range of all-terrain and mud-terrain tyres while keeping plenty of sidewall for corrugations, rocks and airing down on sand.
Every Lenso wheel is tested to perform reliably on Australian roads, and Lenso is a global wheel brand with over 30 years behind it. Browse the full Lenso off-road wheels range, or find the right LandCruiser fitment below.
Specs shown are for the 5 stud 70 Series (76, 78 and 79). Older 70 Series and some other LandCruisers use a different stud pattern. See the fitment guide below.
17 Inch Wheels for 79 Series
These 17 inch wheels are made in the 5x150 stud pattern used by the 79 Series LandCruiser, along with the 76 Series wagon and 78 Series Troopy. Pick a single offset all round, or run a track correct combination to bring the rear wheels out in line with the front.

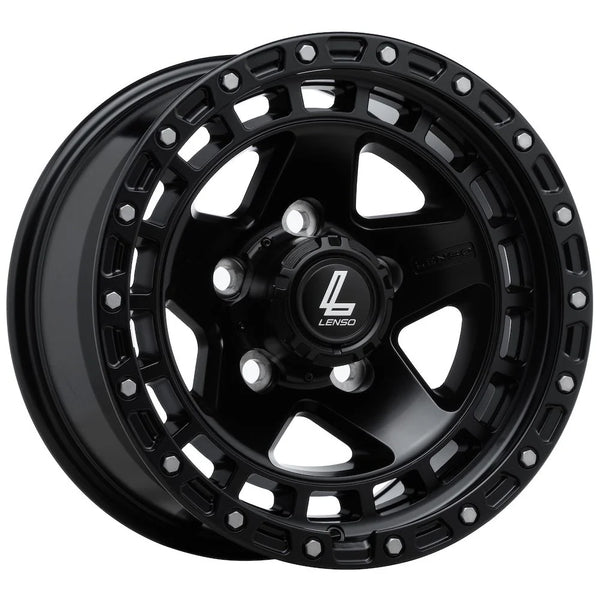

Lenso M-79 17x9
Our exclusive 70 Series LandCruiser wheel. Beadlock-style design with a sharp concave face, track correction fitments and a pop-out cap for manual hubs. 1500kg load rating.
Lenso Amada 17x9
Genuine beadlock for rock crawling and heavy-duty touring. 1600kg load rating in these 5x150 offsets.
Lenso KAOS 17x9
Imitation beadlock with a bold machined finish, built for overlanding and touring. 1500kg load rating.
70 Series and 79 Series Track Correction Wheels
When Toyota fitted the V8 to the 70 Series in 2007, it widened the front track but not the rear. The result is a rear track that sits about 95mm narrower than the front, which you can see from behind and feel in how the vehicle tracks on sand and in ruts. It affects the 76, 78 and 79 Series from 2007 onwards.
Track correct wheels fix this without modifying the axle. By running a different offset on the rear, the rear wheels are pushed out to line up with the front.
| Position | Offset | Lenso wheels |
|---|---|---|
| Front | -12 | M-79, Amada, KAOS |
| Rear | -59 | M-79, Amada |
The 47mm difference between -12 and -59 moves each rear wheel out about 47mm further than the front, closing up the roughly 95mm gap across the axle.
Track correction widens the rear track beyond the factory setting. Australian rules on track width and wheels extending past the bodywork vary by state, so check with your local authority or an engineer, or talk to our team before you order.
80 Series LandCruiser Wheels
The 80 Series LandCruiser uses a 6x139.7 stud pattern, not the 5x150 of the 70 Series. The Amada and KAOS are both available in 6x139.7, so 80 Series owners can run the same tough 17 inch styles. The 80 Series has a larger centre bore (around 110mm) than many 6x139.7 utes, so check with our team that your chosen wheel suits the hub before you order.
Lenso Amada 17x9
Genuine beadlock for rock crawling and heavy-duty touring. 1250kg to 1600kg load rating depending on offset.
View Amada
Lenso KAOS 17x9
Imitation beadlock with a bold machined finish, built for overlanding and touring. 1500kg load rating.
View KAOSOffsets can vary by finish. Talk to our team about the best offset for your 80 Series and tyre setup.
LandCruiser Wheel Fitment by Series
Not every LandCruiser shares the same stud pattern or offset. Use this guide to see which Lenso wheels suit your LandCruiser.
| LandCruiser | Stud pattern | Lenso wheels on this page |
|---|---|---|
| 79 Series (single and dual cab) | 5x150 | M-79, Amada, KAOS. Track correct fitments available |
| 76 Series wagon | 5x150 | M-79, Amada, KAOS. Track correct fitments available |
| 78 Series Troopy | 5x150 | M-79, Amada, KAOS. Track correct fitments available |
| 80 Series | 6x139.7 | Amada, KAOS (6x139.7 versions). Confirm centre bore with our team |
| 105 Series | 5x150 | Factory offset is around 0, so the -12 offset M-79, Amada and KAOS are the closest match. Talk to our team to confirm |
| 100 Series (IFS) | 5x150 | Generally needs a higher positive offset than these wheels. Talk to our team |
| 200 Series | 5x150 | Generally needs a higher positive offset than these wheels. Talk to our team |
| 300 Series | 6x139.7 | Factory offset is around +60, so these wheels are not a match. Talk to our team |
70 Series models built before 1999 (such as the 75 Series) use a 6x139.7 stud pattern, not 5x150. If you are not sure what your LandCruiser runs, call us on 1800 453 676.
Lenso LandCruiser Wheel Specs
| Wheel | Size | 5x150 offsets | 6x139.7 offsets | Load rating | Finishes |
|---|---|---|---|---|---|
| M-79 | 17x9 | -59, -12 | n/a | 1500kg | Satin Black, Dirty Bronze, Graphite Grey, Full Polished |
| Amada (beadlock) | 17x9 | -59, -38, -12 | -38, -22, -12, 0 | 1250kg (0, -22) or 1600kg (-12, -38, -59) | Full Machined, Machined Face Black Ring, Satin Black Machined Ring |
| KAOS (pre-order) | 17x9 | -12 | 0 | 1500kg | Full Machined, Machined Black Ring, Satin Black Machined Ring |
Available offsets can vary by finish and stock. Check the product page for current options. The Amada is a genuine beadlock wheel and is not for on-road use.
Why LandCruiser Owners Choose Lenso
Made for the 70 Series
The M-79 is designed specifically for the 70 Series LandCruiser, with track correction fitments and a pop-out cap to suit manual hubs.
Rated for GVM upgrades
With load ratings of 1500kg to 1600kg per wheel in 5x150, these wheels are built for loaded trays, canopies and GVM upgraded LandCruisers.
Built for Australian conditions
Every Lenso wheel is made from premium-grade aluminium and tested to perform reliably on Australian roads.
Lifetime warranty
Every Lenso wheel supplied in Australia comes with our Lifetime Warranty Program, plus Australia wide delivery on all wheel sets.
LandCruiser Wheels FAQs
What size wheels fit a 79 Series LandCruiser?
The 79 Series uses a 5x150 stud pattern with M14 x 1.5 wheel nuts and comes on 16 inch wheels from the factory. 17 inch is a popular upgrade, and the Lenso M-79, Amada and KAOS are all 17x9 wheels made in the 79 Series 5x150 fitment.
What is track correction on a 79 Series?
Since the V8 update in 2007, the 70 Series rear track sits about 95mm narrower than the front. Track correction brings the rear wheels out to line up with the front. With wheels, this is done by running a -12 offset on the front and a -59 offset on the rear.
What offset wheels do I need for a 79 Series?
For a track correct setup, run -12 offset wheels on the front and -59 offset wheels on the rear. The Lenso M-79 and Amada are available in both offsets. If you prefer one offset all round, -12 is available in the M-79, Amada and KAOS.
Do these wheels fit a 76 Series or 78 Series Troopy?
Yes. The 76 Series wagon and 78 Series Troopy use the same 5x150 stud pattern as the 79 Series and have the same narrower rear track, so the M-79, Amada and KAOS in 5x150 suit them, including track correct fitments.
Do Lenso wheels fit an 80 Series LandCruiser?
The 80 Series uses a 6x139.7 stud pattern. The Amada and KAOS are both available in 6x139.7, but the 80 Series has a larger centre bore than many 6x139.7 vehicles, so check with our team that your chosen wheel suits the hub. The M-79 is 5x150 only and does not fit the 80 Series.
Will these wheels fit a 100, 105, 200 or 300 Series LandCruiser?
The 105 Series shares the 70 Series 5x150 stud pattern and runs around 0 offset from the factory, so the -12 offset M-79, Amada and KAOS are the closest match. The 100 Series and 200 Series also use 5x150 but generally need a higher positive offset. The 300 Series uses 6x139.7 with a factory offset around +60. Call us on 1800 453 676 and we will help you find the right option.
What tyre size should I run on 17 inch LandCruiser wheels?
Popular 17 inch tyre sizes for the 70 Series include 265/70R17 and 285/70R17 (about 33 inches). Larger tyres may need a lift and should be checked against your state's rules.
Are Lenso LandCruiser wheels rated for a GVM upgrade?
Yes. The M-79 and KAOS carry a 1500kg load rating per wheel, and the Amada is rated at 1600kg per wheel in its 5x150 offsets, which suits heavily loaded and GVM upgraded LandCruisers.
Is the Amada beadlock wheel road legal?
The Amada is a genuine beadlock wheel and Lenso lists it as not for on-road use. For a wheel you can drive on the road with a beadlock-style look, choose the M-79 or KAOS.
Not Sure Which Wheel Suits Your LandCruiser?
Tell us your series, year, tyre size and any lift, flares or track correction plans, and our team will help you pick the right Lenso wheel and offset. Need something different? Ask about our custom wheel fitments.
